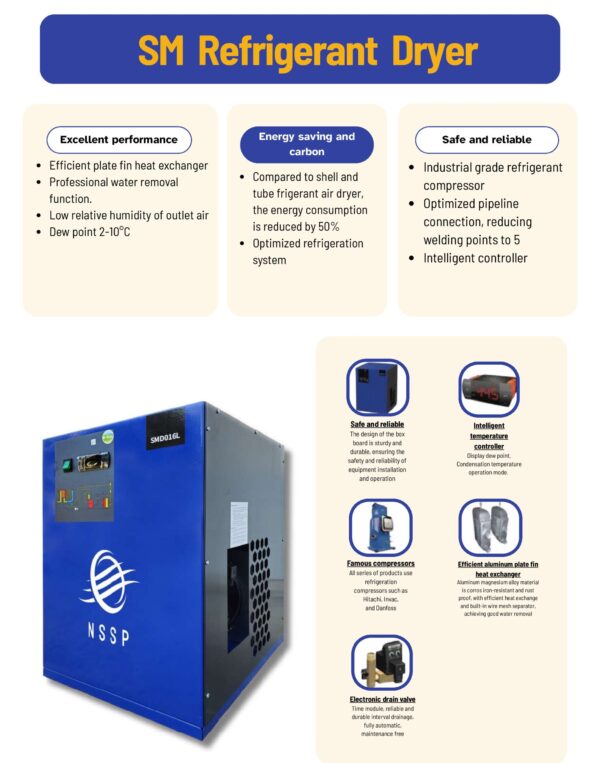

Excellent performance Energy saving and:
Efficient plate fin heat exchanger
Professional water removal function.
Low relative humidity of outlet air
Dew point 2-10°C

Energy saving and carbon:
Compared to shell and tube frigerant air dryer, the energy consumption is reduced by 50%
Optimized refrigeration system

Safe and reliable:
Industrial grade refrigerant compressor
Optimized pipeline connection, reducing welding points to 5
Intelligent controller

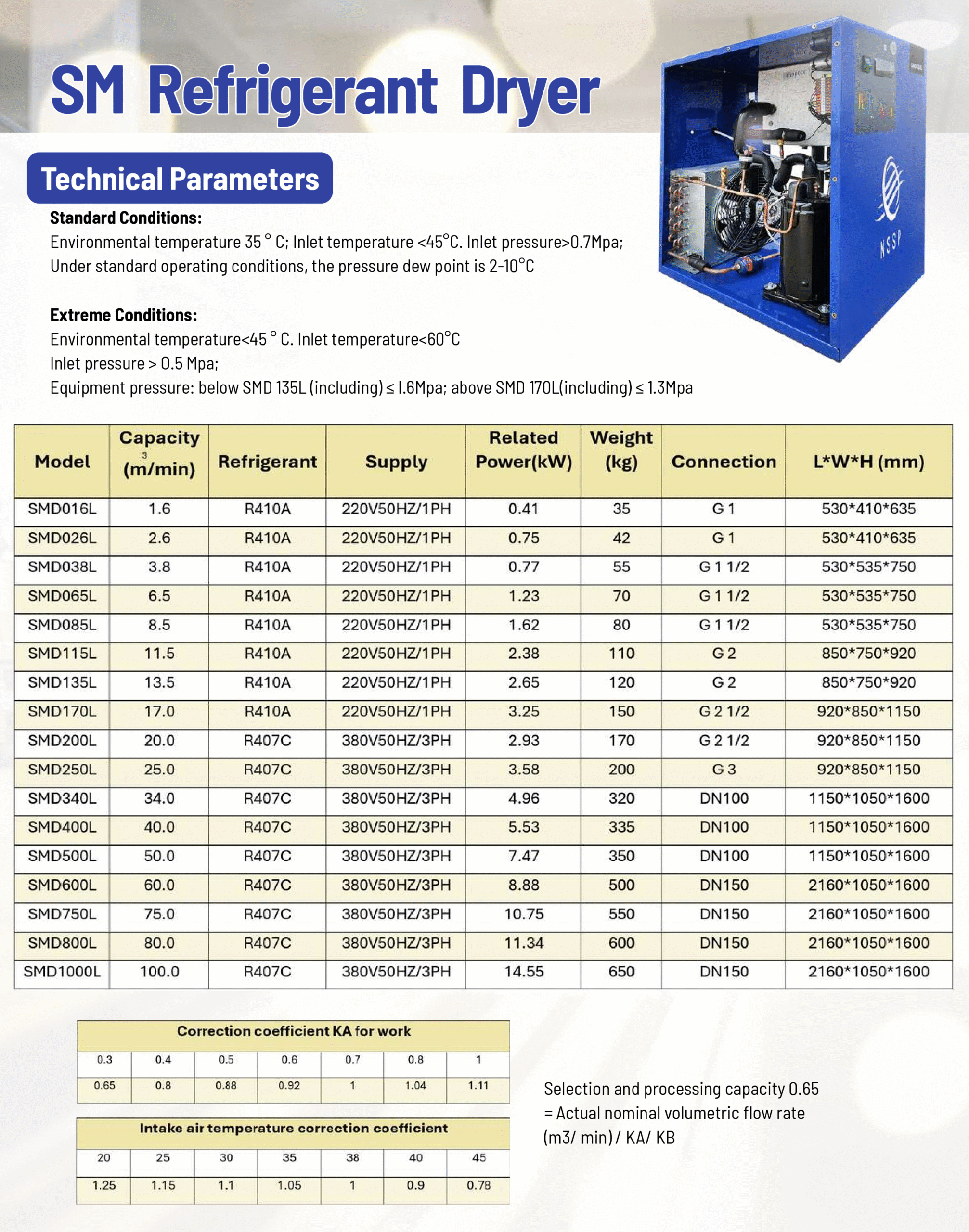

Technical Parameters:
Standard Conditions:
Environmental temperature 35 ° C; Inlet temperature <45°C. Inlet pressure>0.7Mpa;
Under standard operating conditions, the pressure dew point is 2-10°C

Extreme Conditions:
Environmental temperature<45 ° C. Inlet temperature<60°C
Inlet pressure > O.5 Mpa;
Equipment pressure: below SMD 135L (including) ≤ I.6Mpa; above SMD 170L(including) ≤ 1.3Mpa
